ATS SMGQ2B-100
Detailed introduction：
Application
SMGQ2B series dual power automatic transfer switch is a new type dual power automatic transfer switch (ATS) integrating switch with logical control and realizing mechatronics, is mainly used in the industrial and enterprise distribution equipment of rated insulation voltage up to 1000V, rated frequency 50Hz, rated voltage up to 400V and conventional thermal current up to 630A to auto transfer between main power and backup power of distribution system or auto transfer and safely isolate between two load equipment, widely used in the important places that disallow power off, such as hospitals, markets, banks, high constructions, highway, airports, industrial assembly lines, and military facilities.
According the the functions, it is mainly classified in three types: type A (basic type), type B (fire linkage type) and type C (three phase monitoring type). A split LCD controller can be connected to above three types to realize the functions of LCD display, transfer and return delay time setting, over and under voltage protection value setting and phase missing monitoring.
Technical Parameter
|
ATS Model |
SMGQ2B |
||||||||||||
|
Agreed Heating Current Ith |
100A |
160A |
630A |
||||||||||
|
Rated Current In (A) |
16 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
400 |
630 |
|
|
Rated Insulation Voltage Ui (V) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
|
Dielectric Strength (V) |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
|
|
Rated Impulse Withstand Voltage Uimp (kV) (Installation Category IV) |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
|
|
Rated Working Current Ie (A) |
AC-33iB |
16 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
400 |
630 |
|
Rated Short Time Withstand Current Icw (kA Rms) 0.1s/1s |
9/5 |
9/5 |
9/5 |
9/5 |
9/5 |
9/5 |
12/25 |
12/25 |
12/25 |
12/25 |
40/20 |
50/25 |
|
|
Rated Breaking Capacity (A Rms)AC-33iB 380V |
128 |
160 |
320 |
500 |
640 |
800 |
1000 |
1280 |
1600 |
2000 |
3200 |
5000 |
|
|
Rated Making Capacity (A Rms)AC-33iB 380V |
160 |
200 |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
4000 |
6300 |
|
|
Conversion Time |
I-0-II or II-0-I (s) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
1 |
1 |
1.1 |
1.1 |
1.2 |
1.2 |
|
Control Voltage |
AC230V |
||||||||||||
Technical Parameter of Controllers
|
Controller Type Item |
Type A |
Type B |
Type C |
|
Control Working Voltage |
AC230V 50/60Hz |
||
|
Auxiliary Working Voltage |
AC230V |
||
|
Power Loss |
Not more than 10W |
||
|
Working Position |
Three working positions (I---Main power; II---Backup power; 0---Double power break) |
||
|
Operation Mode |
Manual, Auto |
||
|
Display Mode |
LED display, LCD display (with LCD controller) |
||
|
Transfer Mode |
Auto Transfer and Auto Recovery, Auto Transfer and no Auto Recovery (with LCD controller) |
||
|
Voltage Monitoring |
Single Phase Monitoring (Phase A) |
Three Phase Phase Monitoring (Phase A, B, C) |
|
|
Generator Control |
No |
Yes (One set relay dry contact) |
|
|
Fire Linkage Control |
No |
Yes (DC24V Input) |
|
|
Under Voltage Transfer Value |
100%-150% (with LCD controller) |
||
|
Over Voltage Transfer Value |
40%-100% (with LCD controller) |
||
|
Transfer Delay Function |
0-29s (with LCD controller) |
||
|
Delay Return Function |
0-29s (with LCD controller) |
||
|

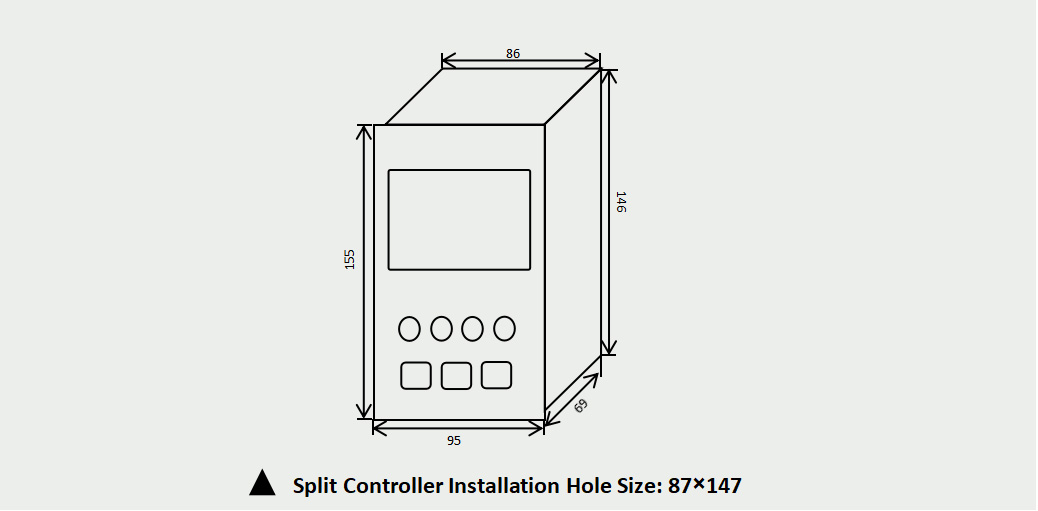

Installation Method of Controller |
Integrated without display screen/Split with display screen |
||
|

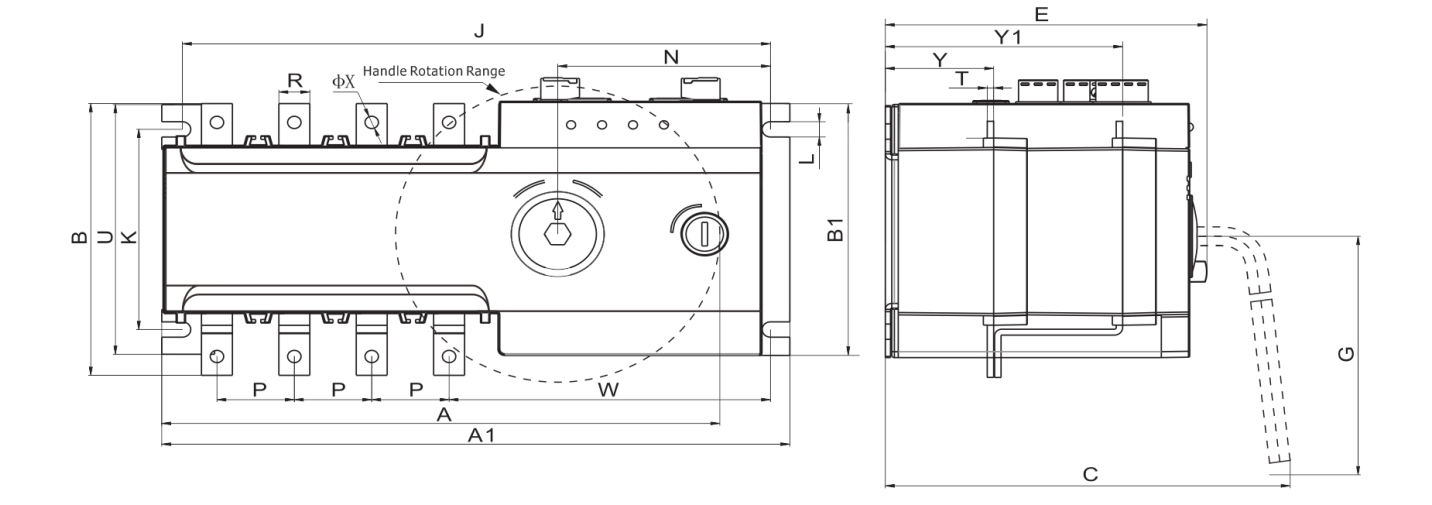

Spec. |
Outline Dimension |
||||||||||||||||
|
A |
A1 |
B |
B1 |
C |
E |
J |
K |
L |
N |
P |
R |
V |
ΦX |
Y |
Y1 |
T |
|
|
Q2B-100/4 |
330 |
244 |
142 |
123 |
165 |
125 |
288 |
85 |
6.5 |
83 |
30 |
14 |
21 |
6.5 |
41.5 |
91.5 |
2.5 |
|
Q2B-160/4 |
374 |
301 |
175 |
140 |
200 |
166 |
285 |
102 |
7 |
94 |
36 |
20 |
31 |
8.5 |
55.50 |
125.5 |
3.5 |
|
Q2B-250/4 |
436 |
373 |
175 |
178 |
250 |
198 |
350 |
108 |
6.5 |
99 |
50 |
24 |
37 |
11 |
72 |
157 |
3.5 |
|
Q2B-630/4 |
502 |
433 |
260 |
260 |
295 |
244 |
416 |
180 |
9 |
101 |
65 |
40 |
47.5 |
12 |
83 |
193 |
5 |
