 Scope of application

○ SMGG2C-160A-1600A is suitable for the connection and breaking of the circuit or electrical isolation, there are three poles, four poles (three poles can be switched off neutral pole) 1000A above is only suitable for electrical isolation.

○ can be provided with the observation window of the product, direct observation of the contact on-off state.

○ Operation:

Direct operation: The handle is mounted on the right side of the switch.

Outside the cabinet operation: Handle installed in the distribution cabinet door.

○ Two auxiliary contacts can be fitted as required.

○ Extended shaft for out-of-cabinet operation.

○ Electrical and mechanical properties and SMGG2C-160A-1600A electrical and mechanical properties corresponding to the same.

○ Can be equipped with cable insulation cover.



SMGG2C-160A~1600A Type Side operation load isolation switch



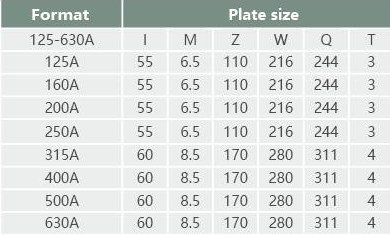

The outline and mounting dimensions of SMGG2C-160A~1600A Type Side operation load isolation switch (mm)



The outline and mounting dimensions of SMGG2C-1000A~1600A Type Side operation load isolation switch (mm)
